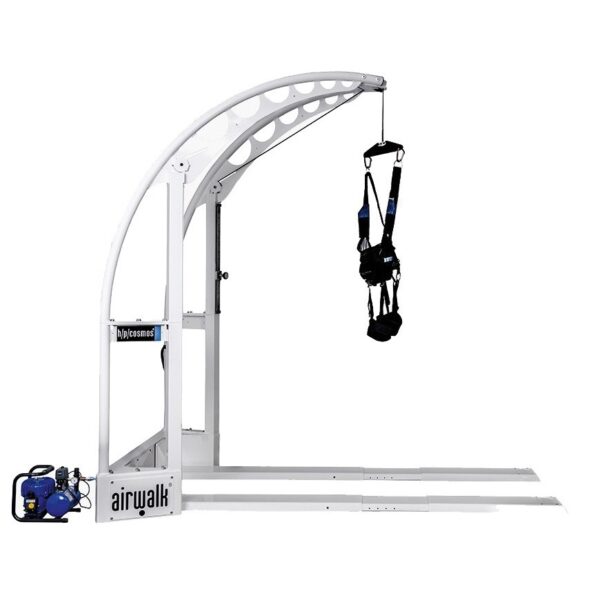

h/p/cosmos airwalk Anti-Gravity Unweighting System

h/p/cosmos airwalk Anti-Gravity Unweighting System

SKU: COS30028

The h/p/cosmos airwalk has been optimised for rehabilitation locomotion therapy.

This specially constructed un-weighting system supports a patient’s natural gait pattern allowing them to start exercising and rehabilitation as early as possible; it is controlled via remote control for the utmost ease of use by both the patient and therapist

Compatible with h/p/cosmos treadmills:

  • Pluto
  • Mercury
  • Locomotion
  • Quasar
  • Pulsar

For information about compatibility with non-h/p/cosmos treadmills, please contact us.

Available for purchase upon enquiry.

If you would like more information on the product, or would like to purchase, please get in touch.

Contact HaB

h/p/cosmos logo.

Not Quite Right?

Check out the brand page for more products from this manufacturer

Airwalk Anti-Gravity Unweighting System

Functional training on a treadmill is a key component of neurological rehabilitation. The h/p/cosmos airwalk has been specifically constructed for unweighting during locomotion therapy.

  • Controlled via remote control
  • Display shows the exact unweighting value

The h/p/cosmos airwalk is a body weight supporting device that provides fall protection, unweighted and/or secured balance training, unweighted and/or secured functional and gait training, overspeed/hyperspeed and excess frequency training.

The h/p/cosmos airwalk can be used with the following patient conditions:

  • Stroke
  • Multiple Sclerosis
  • Cerebral Palsy
  • Parkinson’s Disease
  • Paraplegia
  • Traumatic Brain Injury
  • Endoprosthesis (e.g. total hip replacement)
  • Degenerative Joint Disease (e.g. osteoarthritis of the knee)
  • Spinal Muscular Atrophy
  • Hemplegia

Additional information

Model

h/p/cosmos® airwalk ap

Control

Pneumatic valve with rotary knob

Safety Systems

CE, medical device directive 93/42/EEC 2007/47/EC, MDD, machinery directive 2006/42/EG, ISO 20957-1, EN 14971, EN ISO 13485

Classification

medical device risk class IIa according to MDD, active therapeutic medical device

Usage Class

S, I according to ISO 20957-1

Max Body Weight

250kg

Max Body Height

200cm

Possible restrictions with treadmill inclination

> 10%

Shipping/Delivery Restrictions

Can only be shipped to UK and Ireland

Features

  • Size of frame: L: 236 … 276 cm (7.7 … 9.1 ft.) (depending on treadmill)
  • W: 177 cm (5.8 ft.)
  • H: 273 cm (9.0 ft.) (standard)
  • Net weight: approx. 310 kg (683 lbs)
  • Gross weight: see separate position
  • Max. body weight: 250 kg (551 lbs)
  • Max. body height: 200 cm (6,5 ft.) (standard)
  • Possible restrictions with treadmill inclination >10%
  • Body weight support: dynamic, continuously adjustable approx. 0.5 … 80 kg (1 … 176 lbs) (standard)
  • Vertical amplitude approx. 70 cm (2.3 ft.)
  • Max. rotation 1 x 360°
  • Ambient condition: temperature: +10…+30 °C, humidity: 30…75 %, air pressure: 700…1060 hPa
  • Display: analog manometer on device (standard)
  • Portable with 1.5 m (4.9 ft.) cable and magnet (optionally at extra charge)
  • Resolution: approx. 2.5 kg (5 lbs)
  • Accessories (incl.): instructions for use, 1 unweighting vest cos10096-01 (size M, hip circumference 81…112 cm (2.7 … 3.7 ft.))
  • Treadmill not within scope of delivery
  • Frame color: pure white RAL 9010 (powder coated)
  • Comp. air supply: coupling acc. to ISO4414
  • Weight and package specifications can deviate according to options, accessories, packing and way of transport. E&OE. Subject to alteration without notice

Other option extras and accessories include:

  • Compressor (Alternative: connection to existing compressed air system with 8 – 10 bar)
  • Emergency stop for running belt of an h/p/cosmos treadmill
  • Pneumatic spring mode
  • Portable control unit with magnet
  • Robowalk expander
  • Special frame colours
  • Further vest sizes:  XS to XL

One of our specialist team will be happy to talk you through the available options and discuss with you those that will help you to meet your specific needs.
