Noraxon Ultium Motion 3D Motion Capture/IMU System

Noraxon Ultium Motion 3D Motion Capture/IMU System

SKU: NX870-c

The Noraxon Ulltium Motion 3D Capture System uses an array of inertial measurement units (IMUs) to measure anatomical joint angles, orientation angles, and linear acceleration in natural and lab-based environments.

Available for purchase upon enquiry.

If you would like more information on the product, or would like to purchase, please get in touch.

Contact HaB

Not Quite Right?

Check out the brand page for more products from this manufacturer

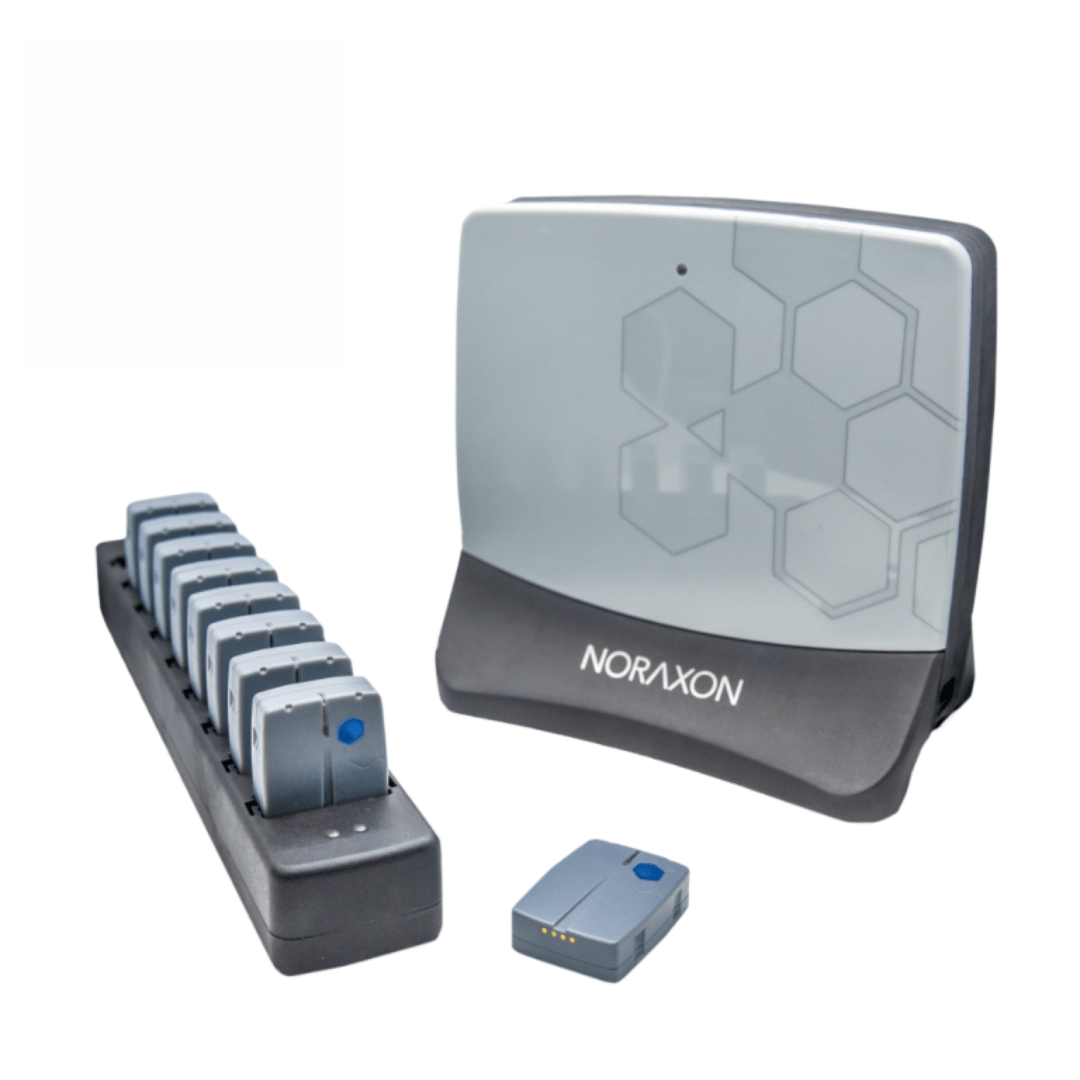

Ultium Motion 3D Capture System

Noraxon Ultium Motion 3D Capture System is the next-generation inertial motion (IMU) 3D capture system. It is equipped with a state-of-the-art sensor design that delivers accurate & reliable kinematic measurement for all types of movement including high velocity and high impact conditions. All while maintaining the advantages of the multi-device myoRESEARCH software platform through the universal connectivity of the Ultium receiver.

Data and subject motion are displayed in real-time with graphs and a skeletal avatar. Generate customised reports or access quaternions and raw sensor data (accelerometer, gyroscopes, & magnetometers). Synchronize with EMG, pressure, force, video and third party devices within the myoRESEARCH software platform.

Wearable 3D Motion Capture

The small water-resistant sensors and updated straps allow for more natural movement capturing while key technological advantages are sustained. Including 10+ hour battery runtime, lossless data capture, and robust wireless communication.

With the Noraxon Ultium Motion 3D Capture System, users will be able to capture 3D kinematics, acceleration, and joint trajectories for the purpose of measuring changes in movement patterns during a variety of applications. Ultium Motion is also available in the Ultium Portable Lab.

Read Bridging Age, Body Mass Index, and Gait Variability: Differential Effects on Stride Interval Dynamics, research using the Ultium Motion system.

Additional information

Shipping/Delivery Restrictions

Can only be shipped to UK and Ireland


  • Maximum # of motion sensors: 16
  • Maximum output rate: 400 Hz
  • Orientation angle accuracy: 0.25 degree (pitch/roll); 1.25 degreess (heading)
  • Anatomical angle accuracy: +/- 1.0 degree (static); +/- 2.0 degrees (dynamic)
  • Angular velocity (Gyroscope): +/- 7000 degrees/sec; Internal Sampling Rate 1600Hz
  • Acceleration (Accelerometers): +/- 200 g; Internal Sampling Rate 1600 Hz
  • Magnetic Field: +/- 16 Gauss; Internal Sampling Rate 100 Hz
  • Operational Battery runtime: >10 hours
  • Recharge time: <4 hours


Click the image below to download the Ultium Motion brochure:
