Noraxon Ultium Accelerometer SmartLead

Noraxon Ultium Accelerometer SmartLead

SKU: NX817

The Noraxon Ultium Accelerometer SmartLead is a compact and lightweight acceleration sensor that is specially designed for use with human and animal surfaces and body segments.

£656.83 Ex VAT £547.36

Not Quite Right?

Check out the brand page for more products from this manufacturer

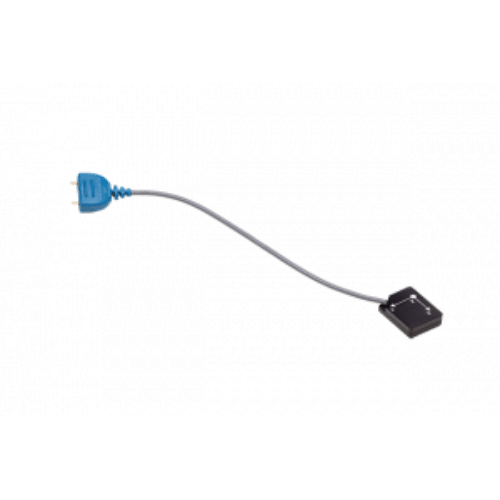

Ultium Accelerometer SmartLead

The Noraxon Ultium Accelerometer SmartLead is a compact and lightweight acceleration sensor. It is suitable for use with human and animal surface segments. The Accelerometer is capable of event detection, measuring vibrations and shock and impact measurement.

Small size

Due to its small size (21mm by 16mm), the sensor is easy to attach to any surface and the sensor’s low weight (8.5gm) avoids sensor-related swinging artefacts. The SmartLead can be used to detect ground contact (heel strike) in walking and running, motion vibration in medical tremor analysis or impact and shock impulses in sports-specific equipment or ergonomic tools.

The SmartLead features 3-axis acceleration, 400g acceleration range and is compact and lightweight.

The Accelerometer must be used in conjunction with a Noraxon Ultium EMG system.

Features



    • tyle=”list-style-type: none;”>
      • 3 axis accel

      eration

<

/ul>

&lt;l

 <

    • /p>

<ul>

      • tyle=”list-style-type: none;”>
          i>400g acceleration

range

      • Sample Rate: 500



    • /1,000Hz

    • Input Range: ±400g
    • Resolution (-16g to +16g): 0.000976g
    • Resolution (+6g to 400g): 0.0234g
    • Noise: 0.029g RMS
    • Bandwidth (500Hz sample rate): 0-250Hz
    • Bandwidth (1,000Hz sample rate): 0-500Hz
    • Analog Output Scale Factor: 12.5mV/g
    • Compact (21mm x 16mm) and lightweight (8.5g)
    • Requires Noraxon MyoMuscle Software module

Resources

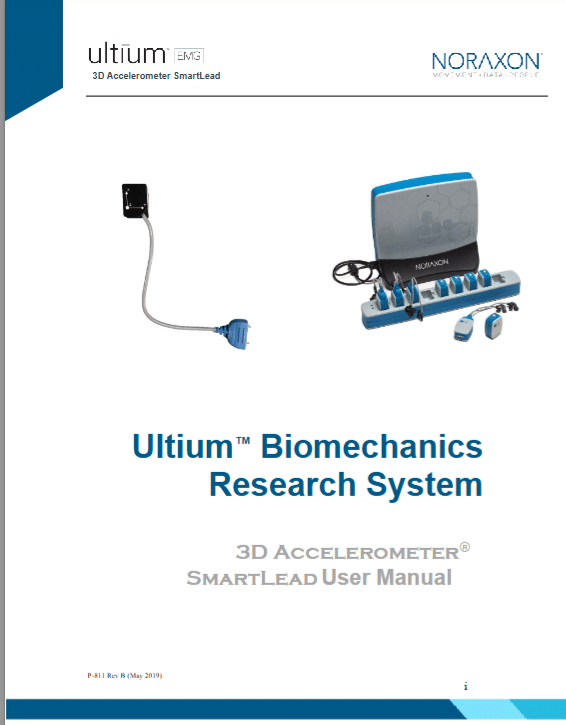

Click the image below to view the full specification sheet
